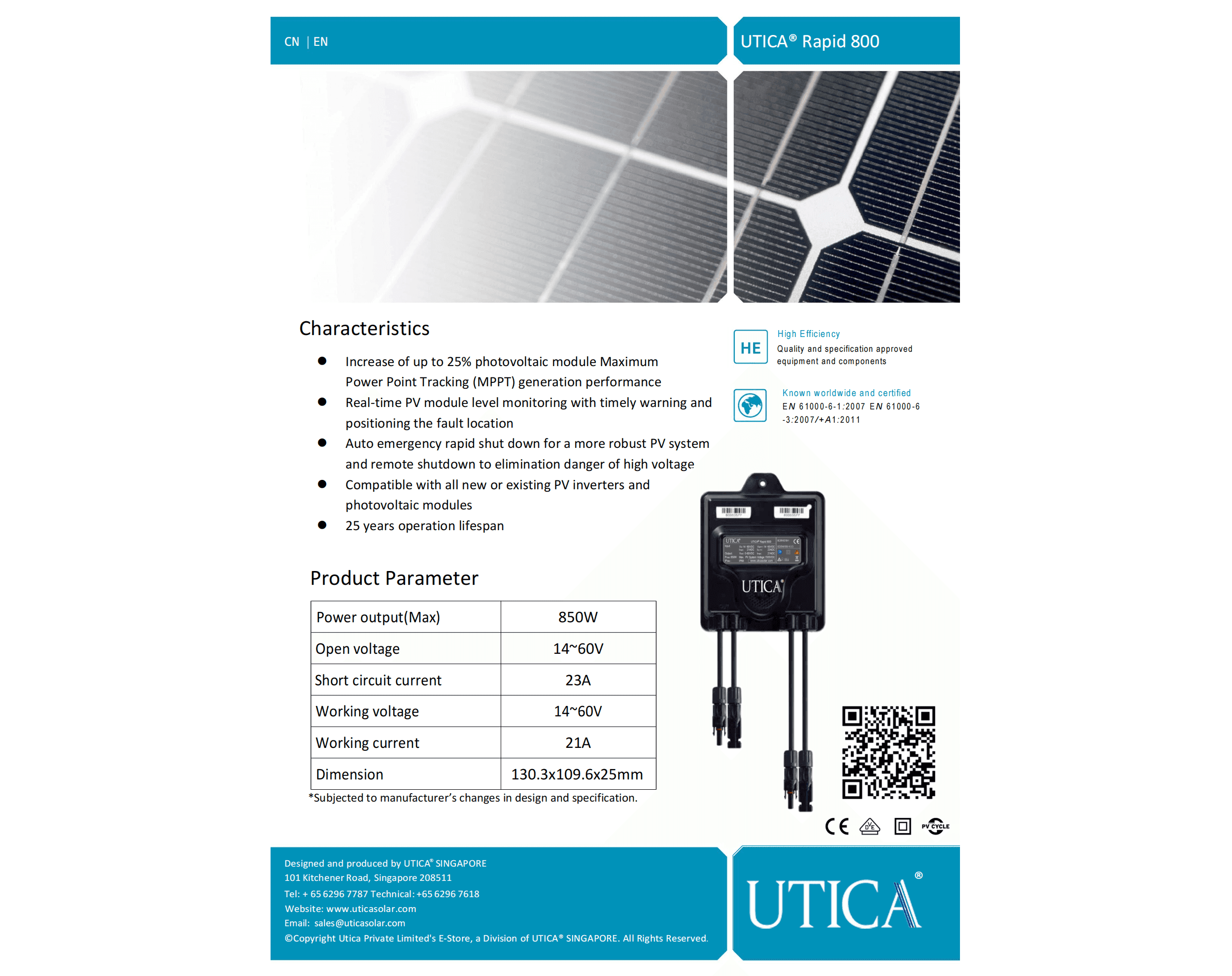

UTICA® Rapid 800 Optimizers

Rapid 800 adds Maximum Power Point Tracking at individual module level.

In a conventional string arrangement, several solar modules operate together as part of the same electrical string. When one panel is affected by shading, orientation differences or other performance limitations, the wider string can also be affected.

By placing an optimizer at panel level, Rapid 800 allows each connected module to respond more independently to its own operating conditions.

This can help improve system performance where rooftops have:

• Partial Shading
• Multiple Roof Orientations
• Uneven Module Exposure
• Complex Or Irregular Layouts
• Module-Level Performance Differences

Rapid 800 is mounted discreetly behind compatible photovoltaic modules, helping maintain a clean roof appearance while adding panel-level optimisation, safety and monitoring capability.

Rapid 800 is particularly useful where a solar array cannot operate under perfectly uniform conditions.

Independent Panel Optimisation

Each connected module is managed through its own MPPT, reducing the impact of a lower-performing panel on the rest of the array.

Flexible Solar Design

Panel-level optimisation provides greater flexibility when designing systems across multiple roof slopes, different orientations or areas affected by intermittent shading.

Enhanced Safety

Rapid 800 supports rapid shutdown and arc-fault protection functions, helping reduce DC voltage when the system is shut down and adding another layer of protection for the solar installation.

Panel-Level Monitoring

When integrated with compatible monitoring infrastructure, Rapid 800 can provide greater visibility into individual module performance.

This makes it easier to identify underperforming panels or abnormal behaviour that may otherwise be difficult to isolate from inverter-level data alone.

Integrated UTICA® Ecosystem

Rapid 800 can be integrated with the UTICA® PV6 Smart Hybrid Inverter, compatible storage systems and SOLARGAGA™ monitoring to form part of a connected solar energy system.

1. Consultation & Site Assessment UTICA® reviews the roof layout, shading conditions, module orientation and electrical requirements to determine whether panel-level optimisation is appropriate.

2. System Design Rapid 800 optimizers are incorporated into the photovoltaic array design alongside compatible inverter, storage and monitoring technologies.

The design considers:

• Solar Module Configuration
• Roof Orientation And Shading
• String Layout
• Inverter Compatibility
• Electrical Protection
• Monitoring Requirements
• Maintenance Access

3. Installation Rapid 800 optimizers are mounted behind compatible photovoltaic modules, keeping the equipment concealed within the solar array while maintaining access for future inspection and maintenance.

4. Commissioning & Monitoring Following installation, the optimizer network and associated inverter system are commissioned and checked for correct operation. Where integrated with compatible monitoring infrastructure, panel-level information can be made available through the SOLARGAGA™ platform for ongoing system visibility and technical support.
